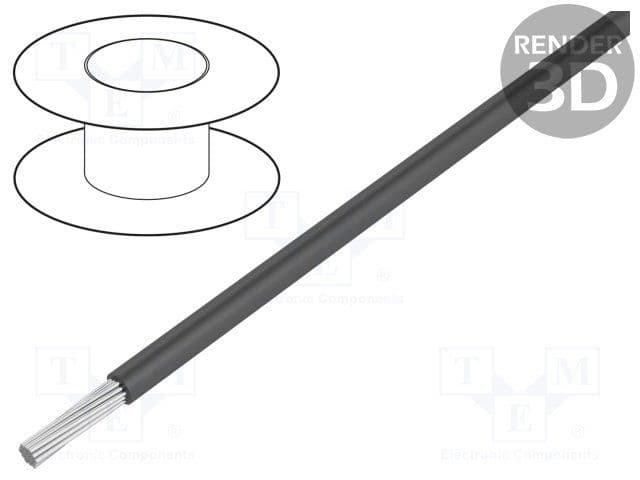

High-temperature hook-up wire featuring a 28AWG stranded copper conductor with silver plating. PTFE insulation provides a 0.027-inch diameter and 0.006-inch thickness, rated for 250V AC/DC. Operating temperature range spans from -60°C to 200°C. This RoHS compliant wire is supplied on a 100-foot spool in a slate grey color.
Package100
Voltage250V
Voltage Rating250V
MountingExternal
Quick Jump:
Technical Specifications
Alpha Wire 2842/7SL005 technical specifications.
General
Package/Case
100
Color
Grey
Conductor Material
Copper, Silver
Insulation Diameter
0.027inch
Insulation Material
PTFE
Insulation Thickness
0.006inch
Jacket Material
PTFE
Length
100foot
Max Operating Temperature
200°C
Min Operating Temperature
-60°C
Mount
External
Number of Strands
7
Outside Diameter
0.69mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MIL-W-16878/6 Type ET, 2842/7
Stranding
7 x 36
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1lb
Wire/Cable Gauge
28AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 2842/7SL005 Datasheet
Download the complete datasheet for Alpha Wire 2842/7SL005 to view detailed technical specifications.
