HOOK-UP SOLID 22AWG WHITE 1000
Package100
Voltage300V
Voltage Rating300V
MountingExternal
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Alpha Wire 3051/1WH005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Alpha Wire 3051/1WH005 technical specifications.
General
| Approvals | UL |
| Package/Case | 100 |
| Color | White |
| Conductor Material | Copper |
| Flammability Rating | UL VW-1 |
| Insulation Material | PVC |
| Insulation Thickness | 0.016inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | External |
| Outside Diameter | 1.65mm |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage | 300V |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Weight | 1lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Not Compliant |
Datasheet
Alpha Wire 3051/1WH005 Datasheet
Download the complete datasheet for Alpha Wire 3051/1WH005 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

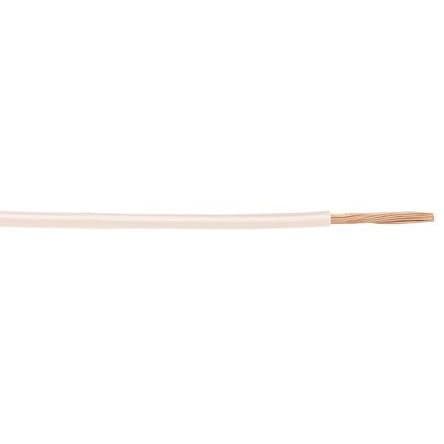

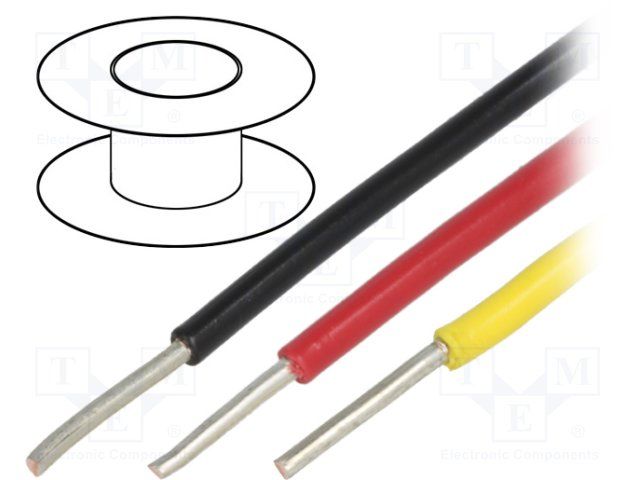

Product Images
