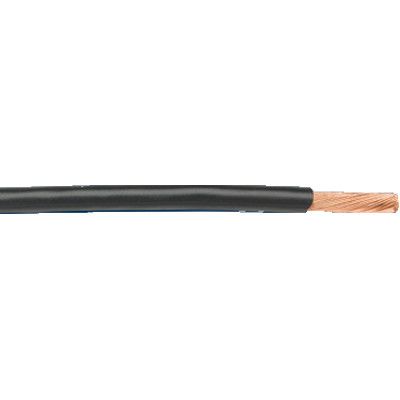

Hook-up wire featuring a 22AWG solid copper conductor, stranded 7x30 configuration, and 300V voltage rating. Insulated with 0.016-inch thick PVC, offering a 0.062-inch insulation diameter and 1.65mm outside diameter. Rated for operation between -40°C and 105°C, with UL and UL VW-1 flammability approvals. This lead-free wire comes on a 100-foot spool in white and green.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha Wire 3051WG005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alpha Wire 3051WG005 technical specifications.
| Approvals | UL |
| Package/Case | 100 |
| Color | White, Green |
| Conductor Material | Copper |
| Flammability Rating | UL VW-1 |
| Insulation Diameter | 0.062inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.016inch |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Conductors | 1 |
| Outside Diameter | 1.65mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| Series | 3051 |
| Stranding | 7 x 30 |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 1lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Hook-Up |
| RoHS | Compliant |
