Hook-up Wire 22AWG 7/30 PVC 1000ft SPOOL WHT/ORG
Voltage300V
Voltage Rating300V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Alpha Wire 3051WO001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Alpha Wire 3051WO001 technical specifications.
General
| Color | White, Orange |
| Conductor Material | Copper |
| Flammability Rating | UL VW-1 |
| Insulation Diameter | 0.062inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.016inch |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Length | 1000foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Outside Diameter | 1.65mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| Series | 3051 |
| Stranding | 7 x 30 |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 3.8lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 3051WO001 Datasheet
Download the complete datasheet for Alpha Wire 3051WO001 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

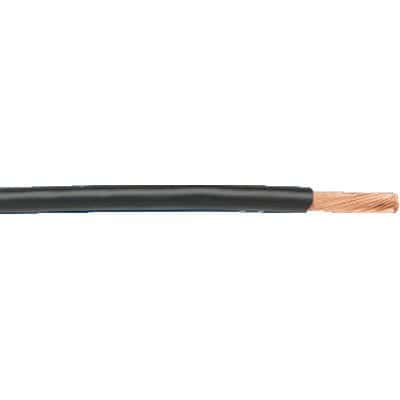

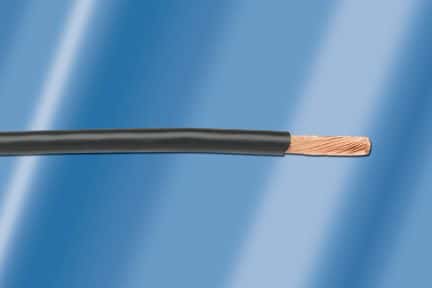

Product Images
