This 300V 10A solid copper wire features a red color, 1.8mm diameter, and 20AWG gauge. It has a maximum operating temperature range of -40°C to 105°C and is made from lead-free materials. The wire is compliant with UL VW-1 flammability rating and is not Reach SVHC compliant.
Package300
Voltage Rating300V
Current Rating10A
MountingWire
Quick Jump:
Technical Specifications
Alpha Wire 3053-RD001 technical specifications.
General
| Package/Case | 300 |
| Color | Red |
| Conductor Material | Copper |
| Current Rating | 10A |
| Flammability Rating | UL VW-1 |
| Jacket Material | PVC |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 300V |
| Mount | Wire |
| Number of Conductors | 1 |
| Number of Cores | 1 |
| Outside Diameter | 1.753mm |
| Reach SVHC Compliant | No |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Diameter | 1.8mm |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 3053-RD001 Datasheet
Download the complete datasheet for Alpha Wire 3053-RD001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

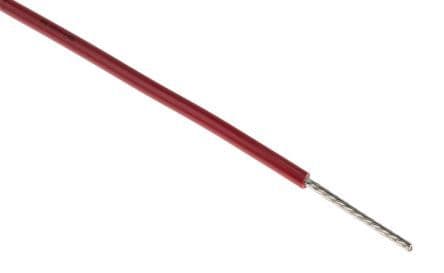

Product Images
