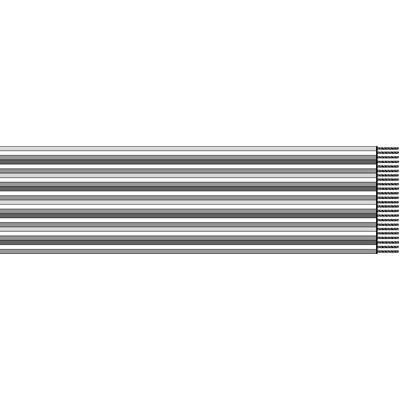

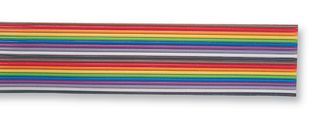

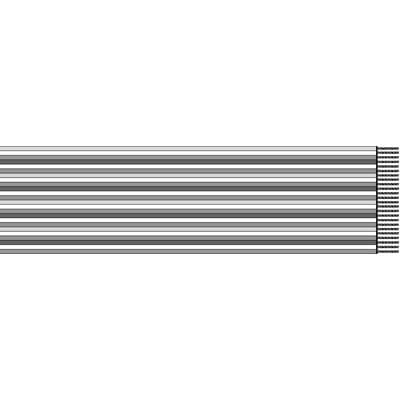

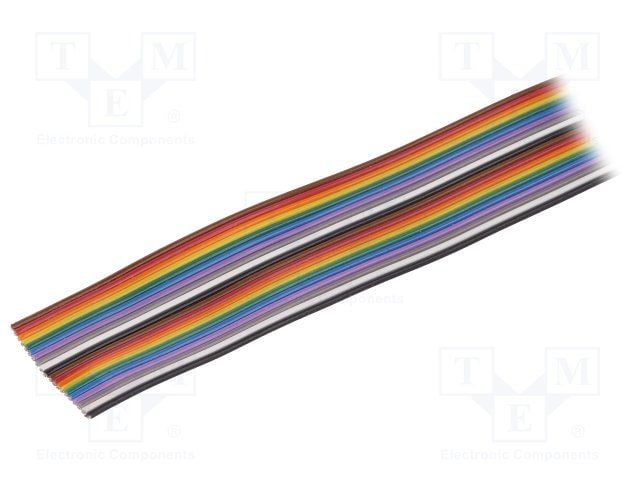

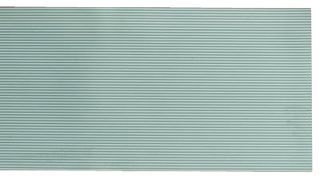

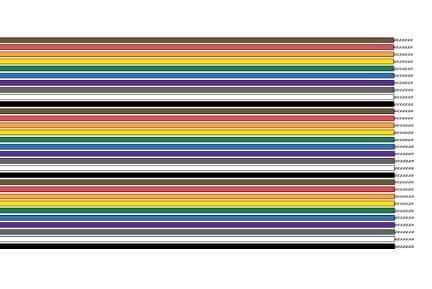

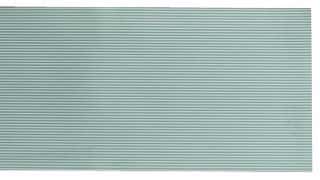

22AWG 10-conductor flat ribbon cable, featuring copper conductors and PVC insulation and jacket. This unshielded cable operates within a temperature range of -20°C to 105°C and boasts a 600V voltage rating. Supplied on a 100-foot spool, it has a 0.025-inch pitch and a ribbon width of 0.51 inches. The cable is UL approved and meets MIL-DTL-16878/1 Type B specifications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha Wire 3530MC005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alpha Wire 3530MC005 technical specifications.
| Approvals | UL |
| Package/Case | 100 |
| Color | Multiple |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 10 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.025inch |
| Reach SVHC Compliant | No |
| Ribbon Thickness | 0.051inch |
| Ribbon Width | 0.51inch |
| Series | MIL-DTL-16878/1 Type B |
| Shielding | Unshielded |
| Stranding | 19 x 34 |
| Voltage | 600V |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Weight | 3.1lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Flat, Ribbon |
| RoHS | Compliant |
