16-conductor, 28AWG unshielded flat ribbon cable on a 100ft spool. Features copper conductors with PVC insulation and jacket, operating from -20°C to 105°C with a 300V voltage rating. The cable has a 0.05-inch pitch, 0.8-inch ribbon width, and 0.033-inch ribbon thickness.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 3583/16MC005 technical specifications.
General
Package/Case
100
Color
Multiple
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
16
Package Quantity
1
Pitch
0.05inch
Reach SVHC Compliant
No
Ribbon Thickness
0.033inch
Ribbon Width
0.8inch
Series
3583
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
DC Rated Voltage
300V
Weight
1.7lb
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Ribbon
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 3583/16MC005 Datasheet
Download the complete datasheet for Alpha Wire 3583/16MC005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

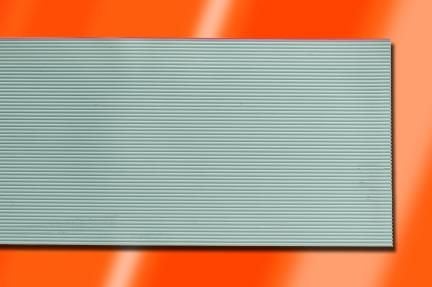

Product Images
