Alpha Wire
5122C-SL005
ALPHA WIRE 5122C SL005 Multipair Screened Cable, Xtra Guard 1, Grey, 2 Pair, 22 AWG, 0.35 mm, 100 ft, 30.5 m
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5122C-SL005 technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
100
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.26inch
Insulation Material
PVC
Insulation Thickness
0.032inch
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Conductors
4
Number of Cores
4
Number of Pairs
2
Outside Diameter
6.6mm
Package Quantity
1
Reach SVHC Compliant
No
Series
Xtra-Guard® 1
Shielding
Shielded
Stranding
7 x 30
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
Weight
4lb
Wire/Cable Gauge
22AWG
Wire/Cable Type
Multi-Pair
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5122C-SL005 Datasheet
Download the complete datasheet for Alpha Wire 5122C-SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

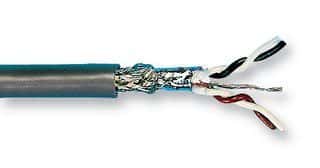

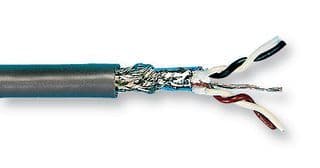

Product Images
