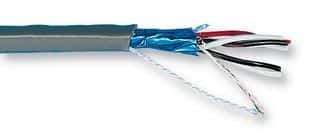

Multi-pair cable, 22AWG, featuring 6 pairs and 12 conductors. Constructed with stranded copper conductors (7 x 30) and PVC insulation with a 0.032-inch thickness, providing a 0.344-inch insulation diameter. Shielded design with a PVC jacket ensures protection. Rated for 300V, operating between -35°C and 105°C. Supplied on a 500-foot spool, this RoHS compliant cable meets UL, CSA, and CE approvals.
PackageAluminum
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5126CSL002 technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | Aluminum |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.344inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.032inch |
| Jacket Material | PVC |
| Length | 500foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -35°C |
| Mount | Cable |
| Number of Conductors | 12 |
| Number of Pairs | 6 |
| Outside Diameter | 8.89mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Xtra-Guard® 1 |
| Shielding | Shielded |
| Stranding | 7 x 30 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 36.52lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5126CSL002 Datasheet
Download the complete datasheet for Alpha Wire 5126CSL002 to view detailed technical specifications.
