4-conductor, 18 AWG multicore cable featuring a 600V voltage rating and a maximum operating temperature of 105°C. Constructed with copper conductors and PVC insulation and jacket, this unscreened cable offers a 10.9mm outside diameter and is supplied on a 100-foot spool. Designed for reliable performance, it operates within a temperature range of -30°C to 105°C and is RoHS compliant.
Package100
Voltage600V
Voltage Rating600V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5430/4SL005 technical specifications.
General
| Package/Case | 100 |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.403inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.063inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Mount | Cable |
| Number of Conductors | 4 |
| Number of Cores | 4 |
| Outside Diameter | 10.9mm |
| Package Quantity | 1 |
| Packaging | Spool |
| RoHS Compliant | Yes |
| Series | Xtra-Guard® 1 |
| Shielding | Shielded |
| Voltage | 600V |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5430/4SL005 Datasheet
Download the complete datasheet for Alpha Wire 5430/4SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

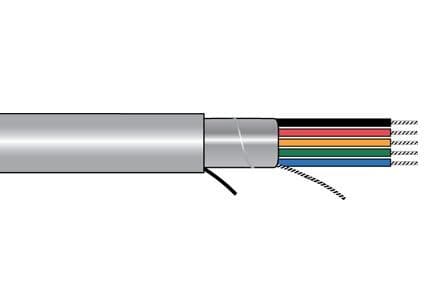

Product Images
