6-conductor, 20AWG multi-conductor cable featuring a shielded construction. Conductors are stranded copper (7 x 28) with PVC insulation and a PVC jacket. Operating temperature range is -30°C to 105°C with a 300V voltage rating. This RoHS compliant cable is supplied on a 100-foot spool and meets UL, CSA, and CE approvals.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5466CSL005 technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | 100 |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.284inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.032inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -30°C |
| Mount | Cable |
| Number of Conductors | 6 |
| Number of Cores | 6 |
| Outside Diameter | 7.11mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Xtra-Guard® 1 |
| Shielding | Shielded |
| Stranding | 7 x 28 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 5.29lb |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Multi-Conductor |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5466CSL005 Datasheet
Download the complete datasheet for Alpha Wire 5466CSL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

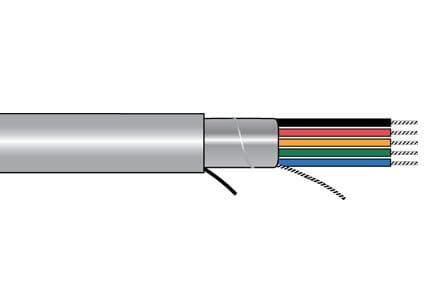

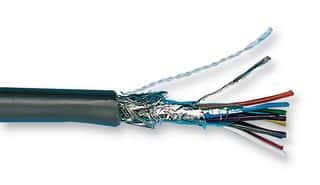

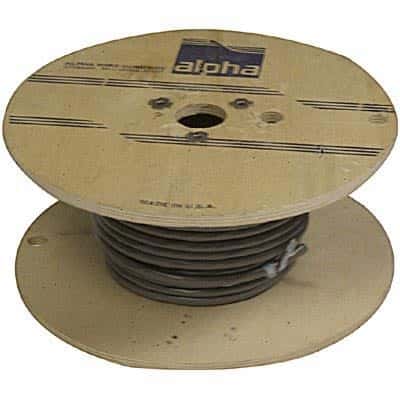

Product Images
