Shielded multipair communication cable featuring 24 AWG stranded copper conductors, 7 strands per conductor. This 1-pair cable offers a characteristic impedance of 54 Ohms and a 300V voltage rating. Constructed with PVC insulation and a PVC jacket, it operates within a temperature range of -20°C to 80°C. The cable is supplied on a 100-foot spool and meets UL and CSA approvals.
Package100
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5471CSL005 technical specifications.
General
Approvals
UL, CSA
Package/Case
100
Characteristic Impedance
54R
Color
Grey
Conductor Material
Copper
Insulation Diameter
0.156inch
Insulation Material
PVC
Insulation Thickness
0.032inch
Jacket Material
PVC
Length
100foot
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
2
Number of Pairs
1
Number of Strands
7
Outside Diameter
4.064mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Stranding
7 x 32
Voltage
300V
Voltage Rating
300V
Weight
1.35lb
Wire/Cable Gauge
24AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 5471CSL005 Datasheet
Download the complete datasheet for Alpha Wire 5471CSL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

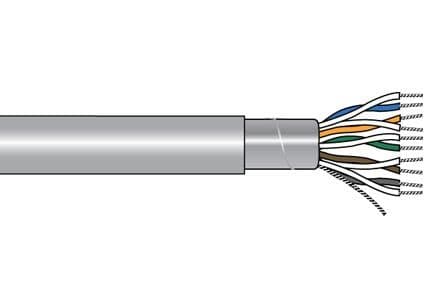

Product Images
