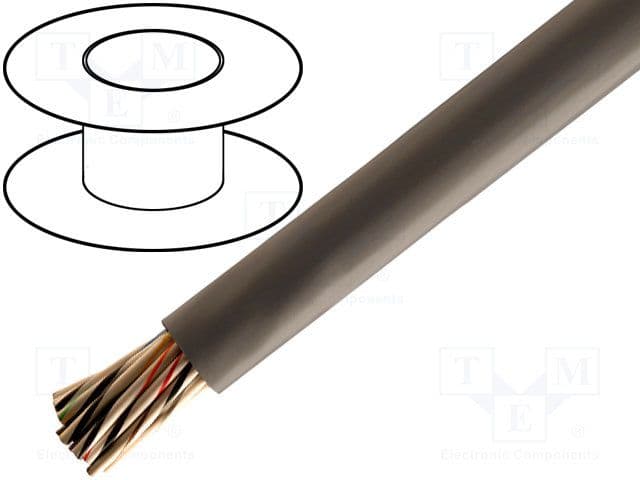

Shielded multi-pair communication cable featuring 2 pairs of 24 AWG stranded copper conductors, each with 0.22 mm conductor cross-sectional area. This cable offers a 300V voltage rating and operates within a temperature range of -20°C to 75°C. The insulation and jacket are constructed from LSZH (Low Smoke Zero Halogen) material, providing a grey exterior. Available on a 100-foot spool, this cable is UL and CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha Wire 5472LSL005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Package/Case | 300 |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.209inch |
| Insulation Material | LSZH |
| Insulation Thickness | 0.028inch |
| Jacket Material | LSZH |
| Length | 100foot |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 4 |
| Number of Cores | 4 |
| Number of Pairs | 2 |
| Outside Diameter | 0.198inch |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| Shielding | Shielded |
| Stranding | 7X32 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Weight | 2.3lb |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Multi-Pair, Twisted Pair |
| RoHS | Compliant |
