Alpha Wire
5499/15CSL001
ALPHA WIRE 5499/15C SL001 Multipair Screened Cable, Xtra Guard 1, Slate, 15 Pair, 24 AWG, 0.23 mm, 1000 ft, 304.8 m
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5499/15CSL001 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.405inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.032inch |
| Jacket Material | PVC |
| Length | 1000foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -35°C |
| Mount | Cable |
| Number of Conductors | 30 |
| Outside Diameter | 10.3mm |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Xtra-Guard® 1 |
| Shielding | Shielded |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5499/15CSL001 Datasheet
Download the complete datasheet for Alpha Wire 5499/15CSL001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

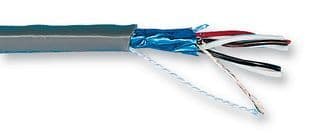

Product Images
