26AWG hook-up wire featuring a silver-plated copper conductor with a 19 x 38 stranding configuration. PTFE insulation provides a 0.01-inch insulation thickness and a 0.039-inch insulation diameter, suitable for operation between -60°C and 200°C. This white wire has a 600V voltage rating and is supplied on a 100-foot spool.
Package100
Voltage600V
Voltage Rating600V
MountingCable
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Alpha Wire 5853/19WH005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Alpha Wire 5853/19WH005 technical specifications.
General
| Package/Case | 100 |
| Color | White |
| Conductor Material | Copper, Silver |
| Insulation Diameter | 0.039inch |
| Insulation Material | PTFE |
| Insulation Thickness | 0.01inch |
| Jacket Material | PTFE |
| Length | 100foot |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -60°C |
| Mount | Cable |
| Outside Diameter | 0.99mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MIL-W-16878/4 Type E, 5853/19 |
| Stranding | 19 x 38 |
| Voltage | 600V |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Weight | 1lb |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5853/19WH005 Datasheet
Download the complete datasheet for Alpha Wire 5853/19WH005 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

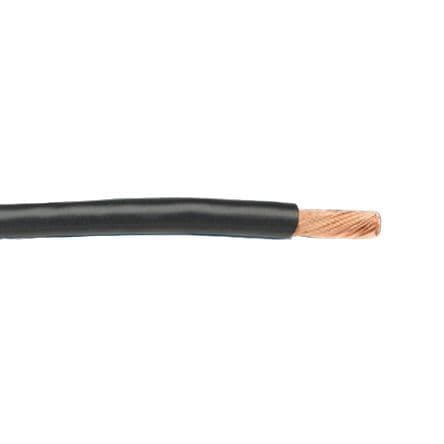

Product Images
