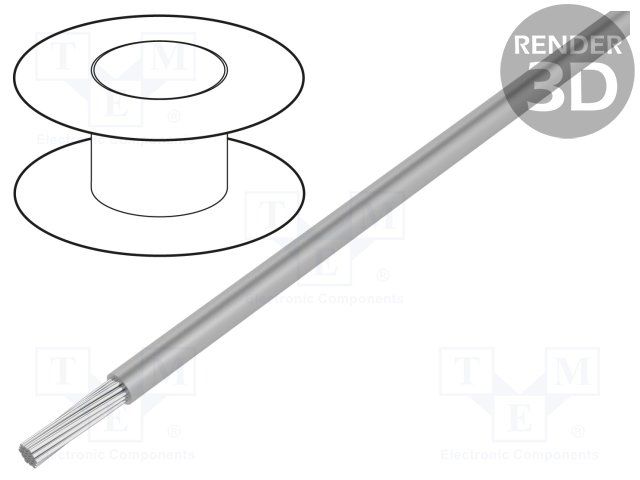

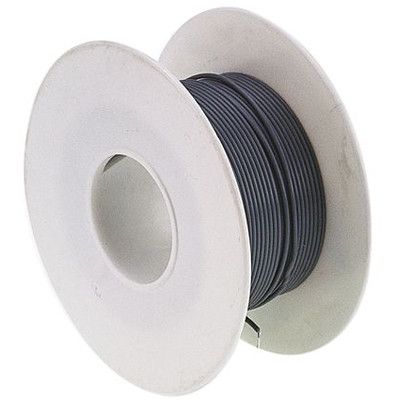

26 AWG stranded hook-up wire featuring silver-coated copper conductors and PTFE insulation. Rated for 600V, this wire operates from -60°C to 200°C and meets UL VW-1 flammability standards. The grey PTFE jacket offers a 0.039-inch insulation diameter and a 1.02mm outside diameter. Supplied on a 100-foot spool, it is RoHS compliant.
Package600
Voltage600V
Voltage Rating600V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 5853SL005 technical specifications.
General
| Approvals | UL |
| Package/Case | 600 |
| Color | Grey |
| Conductor Material | Copper, Silver |
| Flammability Rating | UL VW-1 |
| Insulation Diameter | 0.039inch |
| Insulation Material | PTFE |
| Insulation Thickness | 0.01inch |
| Jacket Material | PTFE |
| Lead Free | Lead Free |
| Length | 100foot |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -60°C |
| Mount | Cable |
| Outside Diameter | 1.02mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MIL-W-16878/4 Type E, 5853 |
| Stranding | 7 x 34 |
| Voltage | 600V |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 600V |
| Weight | 1lb |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 5853SL005 Datasheet
Download the complete datasheet for Alpha Wire 5853SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
