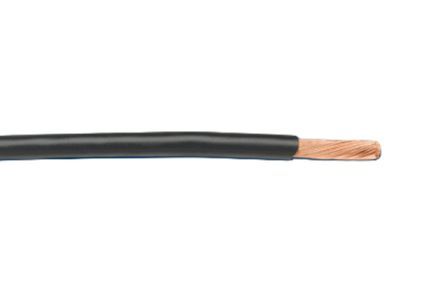

14 AWG hook-up wire featuring a single silver-coated copper conductor with 19 strands of 27 AWG. PTFE insulation and jacket provide a 0.106-inch insulation diameter and 0.017-inch insulation thickness, supporting a 1kV voltage rating. Operating temperature range spans from -60°C to 200°C. This RoHS compliant wire is supplied on a 100-foot spool in white.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha Wire 5879WH005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alpha Wire 5879WH005 technical specifications.
| Approvals | UL |
| Package/Case | 100 |
| Color | White |
| Conductor Material | Copper, Silver |
| Insulation Diameter | 0.106inch |
| Insulation Material | PTFE |
| Insulation Thickness | 0.017inch |
| Jacket Material | PTFE |
| Length | 100foot |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -60°C |
| Mount | External |
| Number of Conductors | 1 |
| Outside Diameter | 1.98mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MIL-W-16878/5 |
| Stranding | 19 x 27 |
| Voltage | 1kV |
| Voltage Rating | 1kV |
| DC Rated Voltage | 1kV |
| Weight | 2lb |
| Wire/Cable Gauge | 14AWG |
| Wire/Cable Type | Hook-Up |
| RoHS | Compliant |
