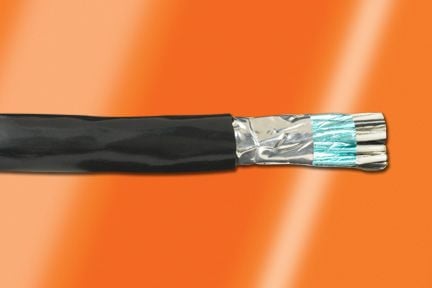

Shielded multi-pair cable featuring 12 conductors of 22AWG stranded copper, arranged in 6 pairs. This cable boasts a 300V voltage rating, 60 Ohm characteristic impedance, and a grey PVC jacket. Insulated with polypropylene, it operates within a temperature range of -20°C to 60°C and is UL and CSA approved. The cable is supplied in a 1000-foot length.
Package300
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 6012CSL001 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | 300 |
| Characteristic Impedance | 60R |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Material | Polypropylene |
| Jacket Material | PVC |
| Length | 1000foot |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 12 |
| Number of Pairs | 6 |
| Number of Strands | 7 |
| Outside Diameter | 9.91mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 7 x 30 |
| Voltage | 300V |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| Weight | 82.47lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
