18AWG multi-pair cable featuring 3 shielded pairs and 6 total conductors. Constructed with copper conductors and PVC insulation and jacket, this cable offers a 300V voltage rating. Operating within a temperature range of -20°C to 80°C, it is RoHS compliant. The cable is presented on a 1000-foot spool with a slate grey color.
Voltage300V
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 6063CSL001 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.418inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.053inch |
| Jacket Material | PVC |
| Length | 1000foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 6 |
| Number of Pairs | 3 |
| Outside Diameter | 10.62mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Stranding | 16 x 30 |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 92.54lb |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 6063CSL001 Datasheet
Download the complete datasheet for Alpha Wire 6063CSL001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

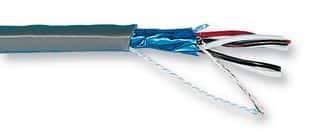

Product Images
