Multi-pair cable, DeviceNet™ series, featuring a single shielded pair with 22 AWG stranded copper conductors. This cable offers a 120 Ohm characteristic impedance, 300V voltage rating, and a current rating of 1.7A. Constructed with PVC insulation and a PVC jacket, it operates within a temperature range of -20°C to 75°C. The cable is supplied on a 100-foot spool and is RoHS compliant.
Package100
Voltage300V
Voltage Rating300V
Current Rating1.7A
Quick Jump:
Technical Specifications
Alpha Wire 6452SL005 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | 100 |
| Characteristic Impedance | 120R |
| Color | Grey |
| Conductor Material | Copper |
| Current Rating | 1.7A |
| Insulation Diameter | 0.28inch |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Number of Conductors | 2 |
| Number of Cores | 4 |
| Number of Pairs | 1 |
| Number of Strands | 19 |
| Outside Diameter | 7.11mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DeviceNet™ |
| Shielding | Shielded |
| Voltage | 300V |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Weight | 4.8lb |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 6452SL005 Datasheet
Download the complete datasheet for Alpha Wire 6452SL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

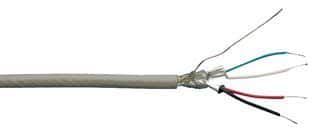

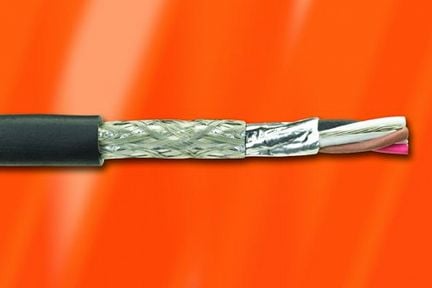

Product Images
