ALPHA WIRE

6710WH005

Datasheet

Hook-Up Wire, 28AWG Stranded Copper, 600V, 105°C, White, 100ft

Alpha Wire

6710WH005

Name: 6710WH005 Alpha Wire
Brand: Alpha Wire
SKU: 6710WH005

Hook-Up Wire, 28AWG Stranded Copper, 600V, 105°C, White, 100ft

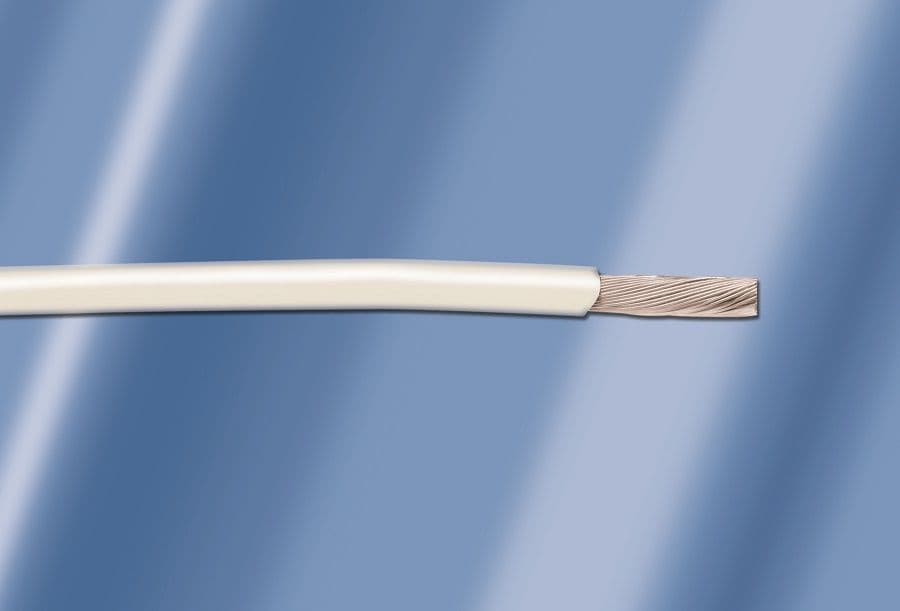

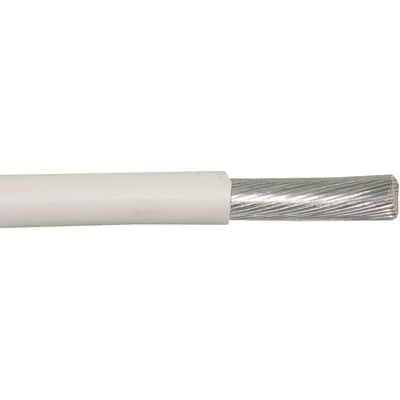

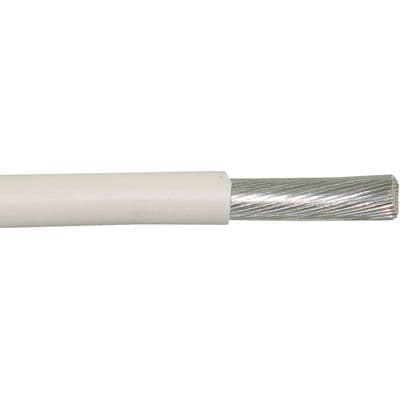

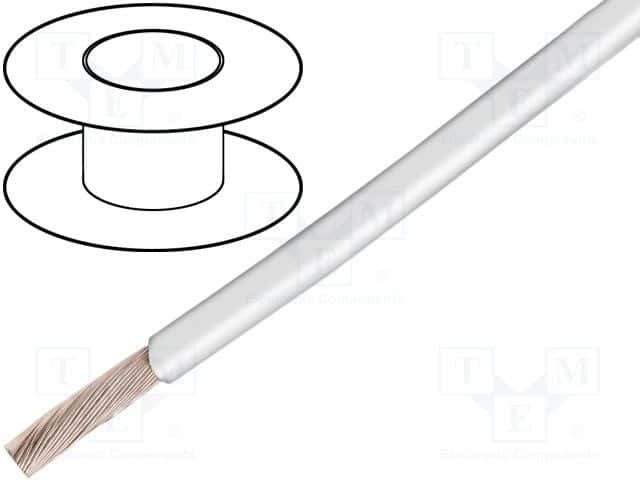

28AWG stranded hook-up wire, featuring a white MPPE insulation and jacket, offers a 600V voltage rating and a 4A current rating. Constructed with a 7 x 36 stranded copper conductor, this wire operates within a temperature range of -40°C to 105°C. The insulation diameter is 0.034 inches with a 0.009-inch thickness, resulting in an overall outside diameter of 0.86mm. This RoHS compliant wire is supplied on a 100-foot spool.

Package100

Voltage600V

Voltage Rating600V

Current Rating4A

Quick Jump:

Technical Specifications

Alpha Wire 6710WH005 technical specifications.

General

Approvals	UL
Package/Case	100
Color	White
Conductor Material	Copper
Current Rating	4A
Insulation Diameter	0.034inch
Insulation Material	MPPE
Insulation Thickness	0.009inch
Jacket Material	MPPE
Length	100foot
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Number of Strands	7
Outside Diameter	0.86mm
Package Quantity	1
Packaging	Spool
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	EcoWire® 6710
Stranding	7 x 36
Voltage	600V
Voltage Rating	600V
Voltage Rating (AC)	600V
DC Rated Voltage	600V
Weight	1lb
Wire/Cable Gauge	28AWG
Wire/Cable Type	Hook-Up
