ALPHA WIRE

6711OR001

Datasheet

Hook-Up Wire, 26AWG, Stranded Copper, 600V, Orange, 105°C

Alpha Wire

6711OR001

Name: 6711OR001 Alpha Wire
Brand: Alpha Wire
SKU: 6711OR001

Hook-Up Wire, 26AWG, Stranded Copper, 600V, Orange, 105°C

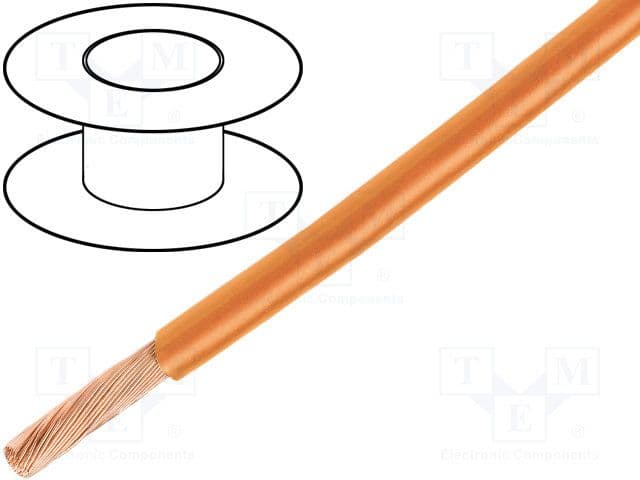

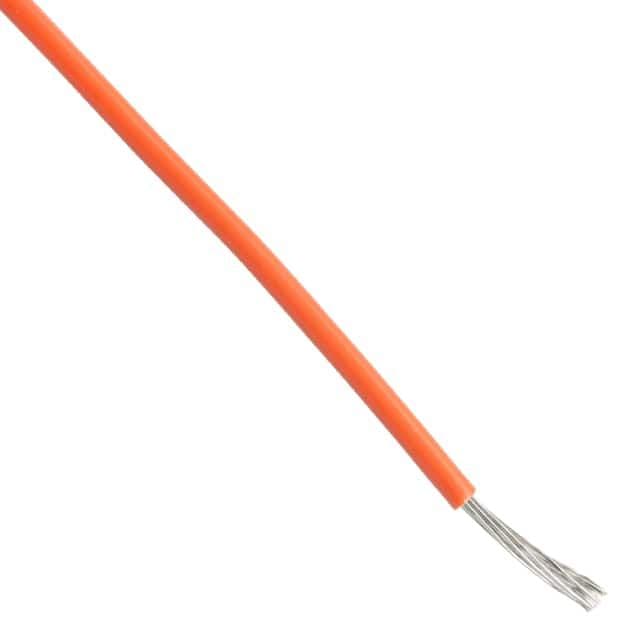

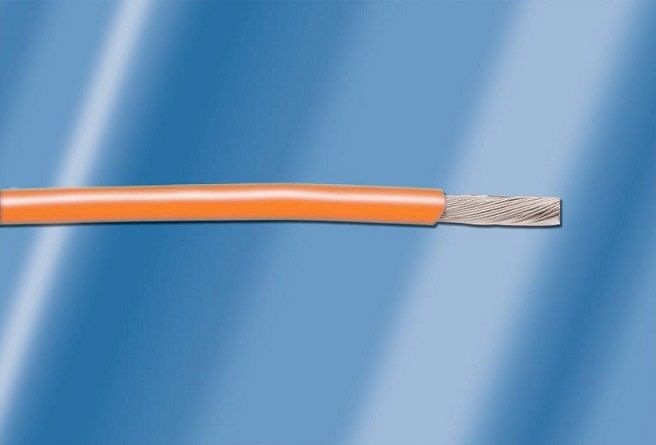

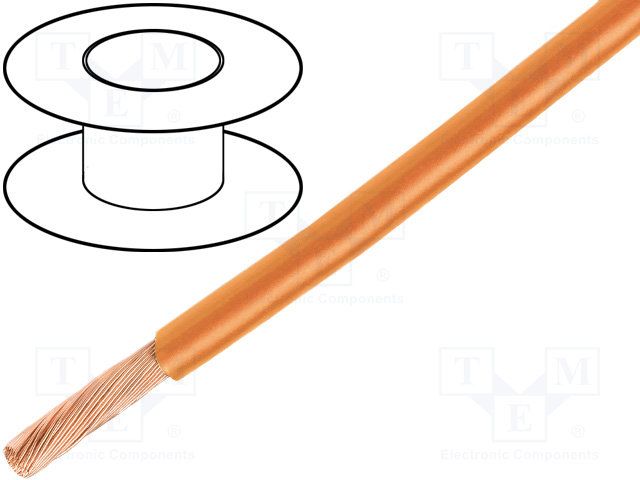

26 AWG stranded hook-up wire, featuring a 7x34 conductor stranding of copper. This unshielded wire boasts a 600V voltage rating and a 4A current rating, operating within a temperature range of -40°C to 105°C. The orange polyphenylene insulation has a 0.038-inch diameter and 0.009-inch thickness, with an overall outside diameter of 0.97mm. Supplied on a 1000-foot spool, this RoHS compliant wire is suitable for external mounting.

Package600

Voltage600V

Voltage Rating600V

Current Rating4A

Quick Jump:

Technical Specifications

Alpha Wire 6711OR001 technical specifications.

General

Package/Case	600
Color	Orange
Conductor Material	Copper
Current Rating	4A
Halogen Free	Not Halogen Free
Insulation Diameter	0.038inch
Insulation Material	Polyphenylene
Insulation Thickness	0.009inch
Jacket Material	Polyhenilether
Length	1000foot
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	External
Number of Strands	7
Outside Diameter	0.97mm
Package Quantity	1
Packaging	Spool
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	EcoWire® 6711
Shielding	Unshielded
Stranding	7 x 34
Voltage	600V
Voltage Rating	600V
DC Rated Voltage	600V
Weight	1.75lb
Wire/Cable Gauge	26AWG
Wire/Cable Type	Hook-Up
