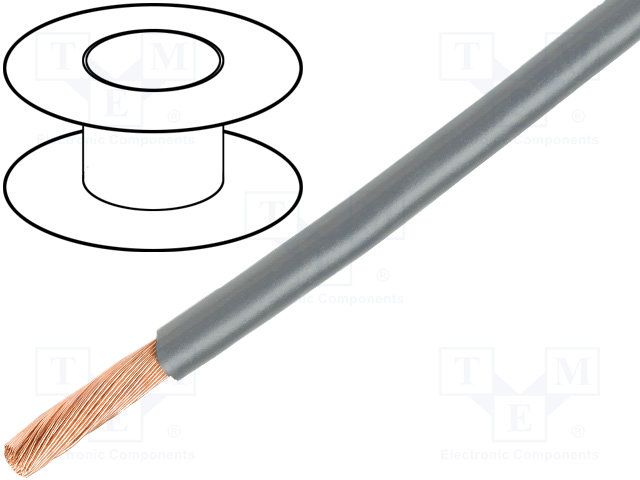

Hook-up wire featuring 26AWG stranded copper conductor, 7 strands of 34 AWG each. Insulated with polyphenylene for a 0.038-inch insulation diameter and 0.009-inch insulation thickness, enclosed in an MPPE jacket. Rated for 600V, with a 5A current rating, operating between -40°C and 105°C. This unshielded, RoHS compliant wire is supplied on a 1000-foot spool in grey.
Package600
Voltage600V
Voltage Rating600V
Current Rating5A
Quick Jump:
Technical Specifications
Alpha Wire 6711SL001 technical specifications.
General
Package/Case
600
Color
Grey
Conductor Material
Copper
Current Rating
5A
Halogen Free
Not Halogen Free
Insulation Diameter
0.038inch
Insulation Material
Polyphenylene
Insulation Thickness
0.009inch
Jacket Material
MPPE
Length
1000foot
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Number of Strands
7
Outside Diameter
0.97mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EcoWire® 6711
Shielding
Unshielded
Stranding
7 x 34
Voltage
600V
Voltage Rating
600V
DC Rated Voltage
600V
Weight
1.75lb
Wire/Cable Gauge
26AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
