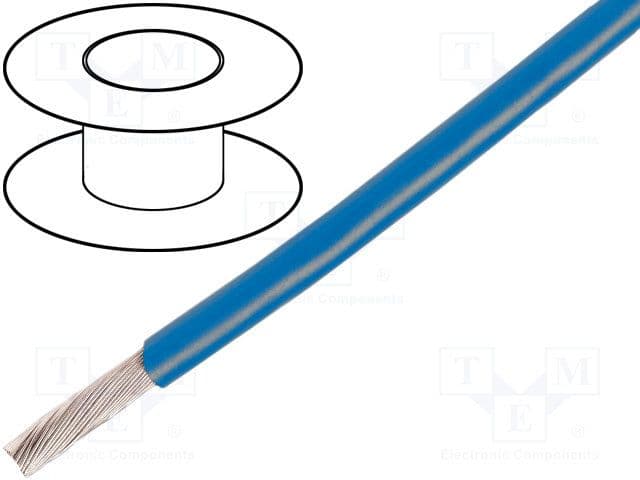

22 AWG stranded hook-up wire featuring a blue MPPE insulation and jacket. This UL-approved cable offers a 600V voltage rating and a 9A current rating, operating between -40°C and 105°C. The conductor is constructed from copper with a 7 x 30 stranding configuration. Supplied on a 100-foot spool, this RoHS compliant wire has an outside diameter of 1.24mm.
Package600
Voltage600V
Voltage Rating600V
Current Rating9A
Quick Jump:
Technical Specifications
Alpha Wire 6713BL005 technical specifications.
General
Approvals
UL
Package/Case
600
Color
Blue
Conductor Material
Copper
Current Rating
9A
Insulation Diameter
0.049inch
Insulation Material
MPPE
Insulation Thickness
0.009inch
Jacket Material
MPPE
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Number of Strands
7
Outside Diameter
1.24mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EcoWire® 6713
Stranding
7 x 30
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
1lb
Wire/Cable Gauge
22AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 6713BL005 Datasheet
Download the complete datasheet for Alpha Wire 6713BL005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
