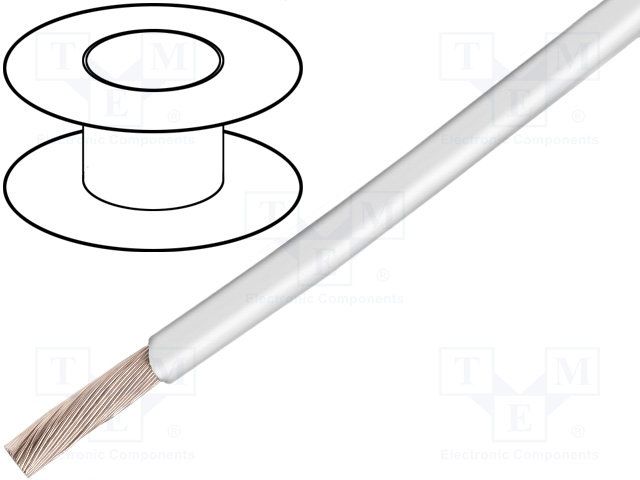

20 AWG stranded hook-up wire, featuring a white polyphenylene insulation and MPPE jacket. This UL-approved cable offers a 600V voltage rating and a 13A current capacity, operating reliably between -40°C and 105°C. Constructed with a copper conductor and 10 strands of 30 AWG, it measures 1.4mm in outside diameter with a 0.055-inch insulation diameter. Supplied on a 1000-foot spool, this RoHS compliant wire is suitable for various electrical applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha Wire 6714WH001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alpha Wire 6714WH001 technical specifications.
| Approvals | UL |
| Package/Case | 600 |
| Color | White |
| Conductor Material | Copper |
| Current Rating | 13A |
| Insulation Diameter | 0.055inch |
| Insulation Material | Polyphenylene |
| Insulation Thickness | 0.009inch |
| Jacket Material | MPPE |
| Length | 1000foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Strands | 10 |
| Outside Diameter | 1.4mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EcoWire® 6714 |
| Stranding | 10 x 30 |
| Voltage | 600V |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 600V |
| Weight | 4.5lb |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Hook-Up |
| RoHS | Compliant |
