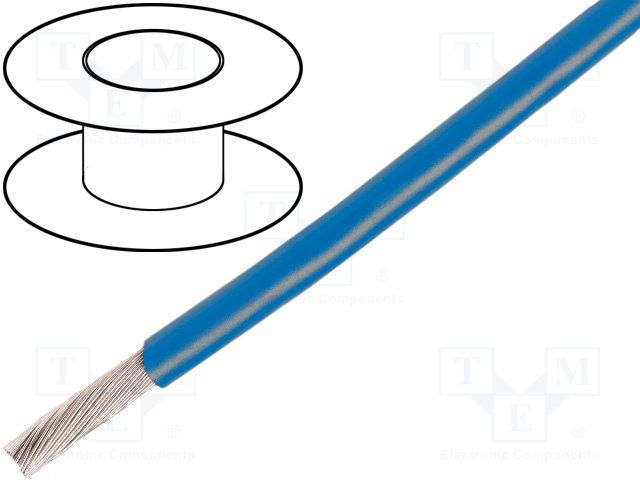

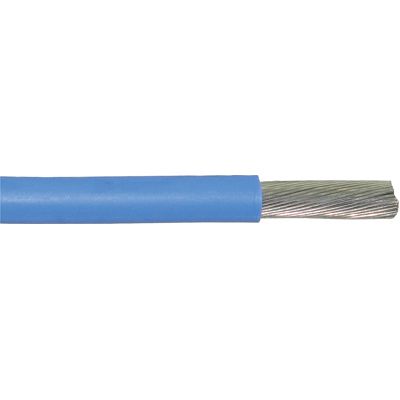

18AWG stranded hook-up wire, featuring a blue MPPE insulation and jacket, designed for 600V applications. This UL-approved copper conductor wire offers a 18A current rating and operates within a temperature range of -40°C to 105°C. The 16-strand construction (16 x 30) ensures flexibility, with an insulation thickness of 0.009 inches and an overall outside diameter of 1.702mm. Supplied on a 100-foot spool, this RoHS compliant wire is suitable for various electrical connections.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha Wire 6715BL005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alpha Wire 6715BL005 technical specifications.
| Approvals | UL |
| Package/Case | 100 |
| Color | Blue |
| Conductor Material | Copper |
| Current Rating | 18A |
| Insulation Diameter | 0.067inch |
| Insulation Material | MPPE |
| Insulation Thickness | 0.009inch |
| Jacket Material | MPPE |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Conductors | 1 |
| Number of Strands | 16 |
| Outside Diameter | 1.702mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Eco Wire™ |
| Stranding | 16 x 30 |
| Voltage | 600V |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 600V |
| Weight | 1lb |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Hook-Up |
| RoHS | Compliant |
