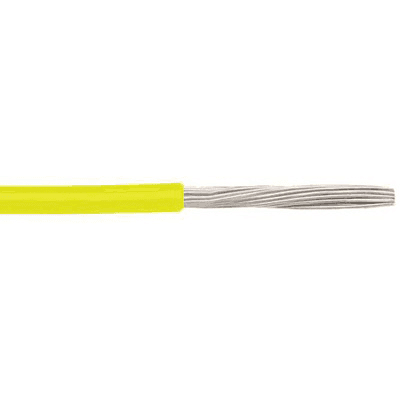

18AWG yellow hook-up wire featuring a stranded copper conductor and a polyphenylene insulation. This unshielded cable offers a 600V voltage rating, a 18A current rating, and operates within a temperature range of -40°C to 105°C. The wire has an outside diameter of 1.7mm and a 1000-foot length supplied on a spool.
Package600
Voltage600V
Voltage Rating600V
Current Rating18A
Quick Jump:
Technical Specifications
Alpha Wire 6715YL001 technical specifications.
General
| Package/Case | 600 |
| Color | Yellow |
| Conductor Material | Copper |
| Current Rating | 18A |
| Halogen Free | Not Halogen Free |
| Insulation Diameter | 0.067inch |
| Insulation Material | Polyphenylene |
| Insulation Thickness | 0.009inch |
| Jacket Material | MPPE |
| Length | 1000foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Strands | 16 |
| Outside Diameter | 1.7mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| Series | EcoWire® 6715 |
| Shielding | Unshielded |
| Stranding | 16 x 30 |
| Voltage | 600V |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Weight | 7.5lb |
| Wire/Cable Gauge | 18AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Compliant |
