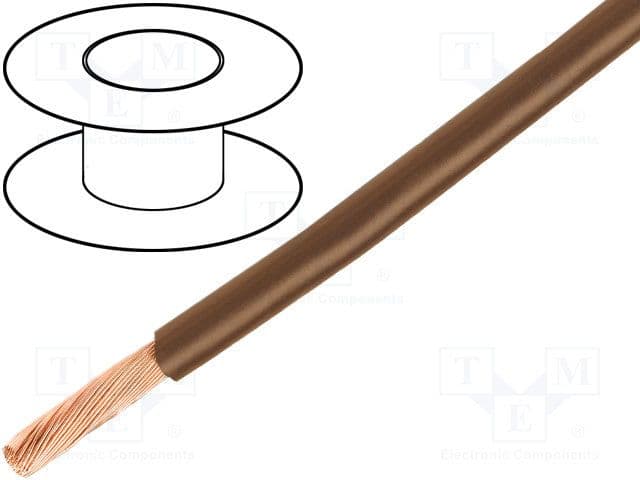

16AWG stranded hook-up wire featuring a brown MPPE insulation and jacket. Conductor material is copper, with a 26 x 30 stranding configuration. Rated for 600V, this wire operates between -40°C and 105°C, with a current rating of 24A. UL approved and RoHS compliant, it is supplied on a 100-foot spool.
Package600
Voltage600V
Voltage Rating600V
Current Rating24A
Quick Jump:
Technical Specifications
Alpha Wire 6716BR005 technical specifications.
General
Approvals
UL
Package/Case
600
Color
Brown
Conductor Material
Copper
Current Rating
24A
Insulation Diameter
0.081inch
Insulation Material
MPPE
Insulation Thickness
0.011inch
Jacket Material
MPPE
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
External
Number of Strands
26
Outside Diameter
2.06mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EcoWire® 6716
Stranding
26 x 30
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
1.5lb
Wire/Cable Gauge
16AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
