16AWG stranded hook-up wire featuring a white MPPE insulation and jacket. Conductor is copper with a 26 x 30 stranding configuration. Rated for 600V, this wire supports a current rating of 24A and operates within a temperature range of -40°C to 105°C. UL approved and RoHS compliant, it is supplied on a 100-foot spool.
Package600
Voltage600V
Voltage Rating600V
Current Rating24A
Quick Jump:
Technical Specifications
Alpha Wire 6716WH005 technical specifications.
General
Approvals
UL
Package/Case
600
Color
White
Conductor Material
Copper
Current Rating
24A
Insulation Diameter
0.081inch
Insulation Material
MPPE
Insulation Thickness
0.011inch
Jacket Material
MPPE
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
External
Number of Strands
26
Outside Diameter
2.06mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EcoWire® 6716
Stranding
26 x 30
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
1.5lb
Wire/Cable Gauge
16AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 6716WH005 Datasheet
Download the complete datasheet for Alpha Wire 6716WH005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

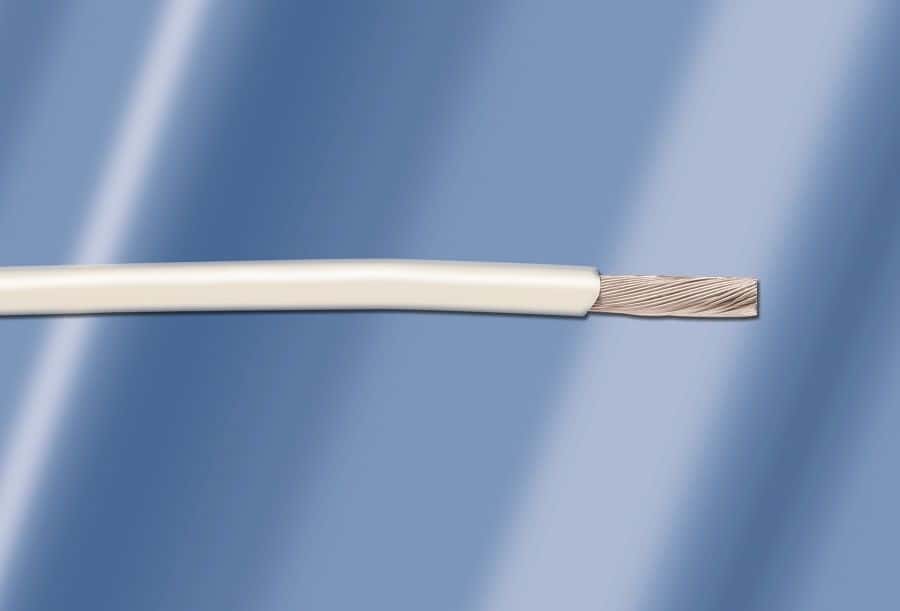

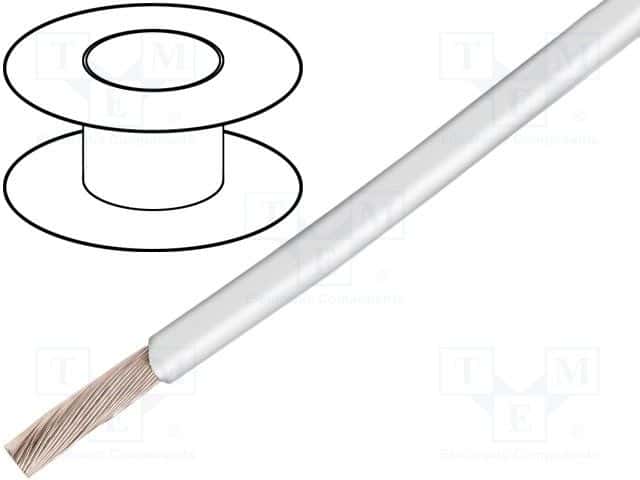

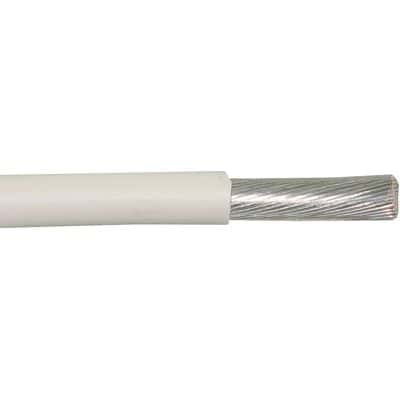

Product Images
