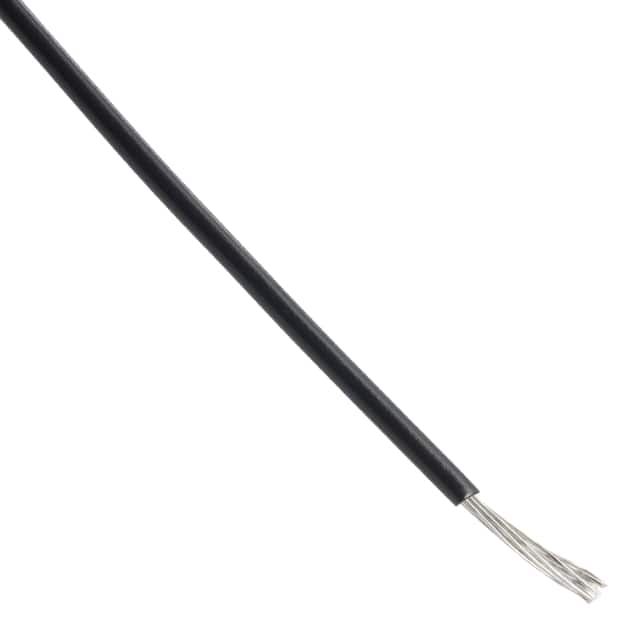

26AWG stranded hook-up wire featuring a black polyphenylene insulation and jacket. Conductor is copper with 7 strands of 34 AWG. Offers a 300V AC/DC voltage rating and operates between -40°C and 110°C. Insulation diameter is 0.035 inches with 0.008 inch insulation thickness, resulting in an outside diameter of 0.89mm. Supplied on a 1000-foot spool.
Package300
Voltage300V
Voltage Rating300V
MountingExternal
Quick Jump:
Technical Specifications
Alpha Wire 6821BK001 technical specifications.
General
Package/Case
300
Color
Black
Conductor Material
Copper
Insulation Diameter
0.035inch
Insulation Material
Polyphenylene
Insulation Thickness
0.008inch
Jacket Material
Polyphenylene
Length
1000foot
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Mount
External
Number of Strands
7
Outside Diameter
0.89mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EcoWire® Plus 6821
Stranding
7 x 34
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
1.22lb
Wire/Cable Gauge
26AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 6821BK001 Datasheet
Download the complete datasheet for Alpha Wire 6821BK001 to view detailed technical specifications.
