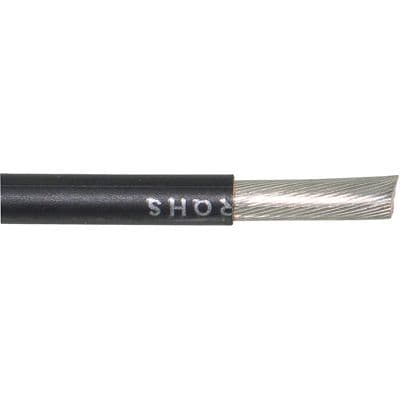

10AWG stranded hook-up wire featuring a black polyphenylene insulation and jacket. Conductor is copper with a 19 x 23 stranding configuration. Operating temperature range is -40°C to 110°C with a 300V voltage rating. Insulation diameter measures 0.147 inches, and insulation thickness is 0.017 inches. This RoHS compliant wire is supplied on a 100-foot spool.
Package300
Voltage300V
Voltage Rating300V
MountingExternal
Quick Jump:
Technical Specifications
Alpha Wire 6831BK005 technical specifications.
General
Package/Case
300
Color
Black
Conductor Material
Copper
Insulation Diameter
0.147inch
Insulation Material
Polyphenylene
Insulation Thickness
0.017inch
Jacket Material
Polyphenylene
Length
100foot
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Mount
External
Number of Strands
19
Outside Diameter
3.73mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EcoWire® Plus 6831
Stranding
19 x 23
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
3.45lb
Wire/Cable Gauge
10AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 6831BK005 Datasheet
Download the complete datasheet for Alpha Wire 6831BK005 to view detailed technical specifications.
