ALPHA WIRE

7053OR005

Datasheet

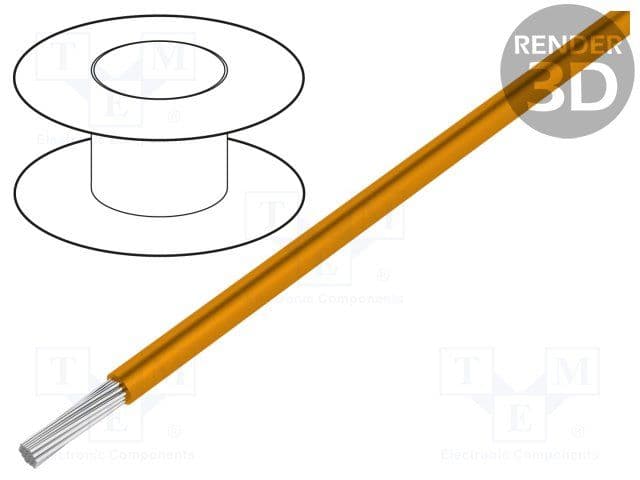

26AWG Hook-Up Wire, 7/34 Stranded Copper, 150V, 105°C, Orange, 100ft

Alpha Wire

7053OR005

Name: 7053OR005 Alpha Wire
Brand: Alpha Wire
SKU: 7053OR005

26AWG Hook-Up Wire, 7/34 Stranded Copper, 150V, 105°C, Orange, 100ft

26AWG hook-up wire featuring a stranded copper conductor with 7 strands of 34 AWG. Insulated with PVC to a 0.01-inch thickness, providing an insulation diameter of 0.039 inches. Rated for 150V, with a DC rated voltage of 300V, and a maximum operating temperature of 105°C. This unshielded, orange wire is supplied on a 100-foot spool, meeting UL approvals and RoHS compliance.

Package100

Voltage150V

Voltage Rating150V

MountingExternal

Quick Jump:

Technical Specifications

Alpha Wire 7053OR005 technical specifications.

General

Approvals	UL
Package/Case	100
Color	Orange
Conductor Material	Copper
Halogen Free	Not Halogen Free
Insulation Diameter	0.039inch
Insulation Material	PVC
Insulation Thickness	0.01inch
Jacket Material	PVC
Length	100foot
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	External
Number of Strands	7
Outside Diameter	1.02mm
Package Quantity	1
Packaging	Spool
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	MIL-W-16878E Type B, 7053
Shielding	Unshielded
Stranding	7 x 34
Voltage	150V
Voltage Rating	150V
DC Rated Voltage	300V
Weight	1lb
Wire/Cable Gauge	26AWG
Wire/Cable Type	Hook-Up
