ALPHA WIRE

7053RD001

Datasheet

26AWG Hook-Up Wire, 150V, 105°C, Red, PVC, 1000ft Spool

Alpha Wire

7053RD001

Name: 7053RD001 Alpha Wire
Brand: Alpha Wire
SKU: 7053RD001

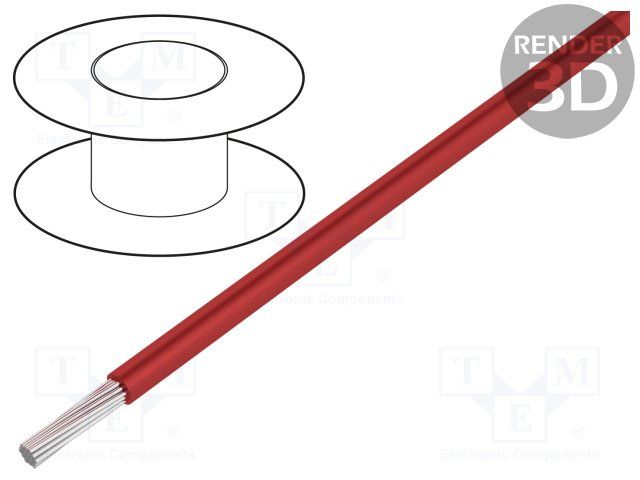

26AWG Hook-Up Wire, 150V, 105°C, Red, PVC, 1000ft Spool

Red hook-up wire, 26AWG, featuring a 7 x 34 stranded copper conductor. Insulated with PVC to a 0.01-inch thickness, providing a 0.039-inch insulation diameter and a 1.02mm overall diameter. Rated for 150V AC and 300V DC, with a 4A current rating and a maximum operating temperature of 105°C. This unshielded, RoHS compliant wire is supplied on a 1000-foot spool.

Voltage150V

Voltage Rating150V

Current Rating4A

Quick Jump:

Technical Specifications

Alpha Wire 7053RD001 technical specifications.

General

Approvals	UL
Color	Red
Conductor Material	Copper
Current Rating	4A
Halogen Free	Not Halogen Free
Insulation Diameter	0.039inch
Insulation Material	PVC
Insulation Thickness	0.01inch
Jacket Material	PVC
Length	1000foot
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Number of Conductors	1
Outside Diameter	1.02mm
Package Quantity	1
Packaging	Spool
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	MIL-W-16878E Type B
Shielding	Unshielded
Stranding	7 x 34
Voltage	150V
Voltage Rating	150V
Voltage Rating (AC)	150V
DC Rated Voltage	300V
Weight	2lb
Wire/Cable Gauge	26AWG
Wire/Cable Type	Hook-Up
