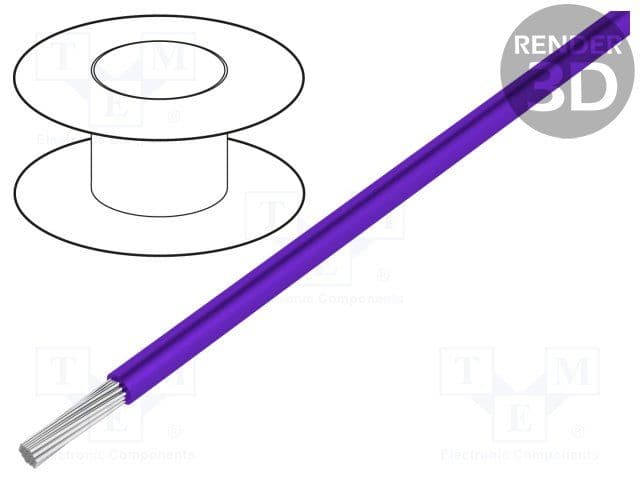

22AWG hook-up wire featuring a stranded copper conductor with 19 strands of 34 AWG. Insulated with PVC to a thickness of 0.01 inches, providing an insulation diameter of 0.052 inches. Rated for 150V, with a DC rated voltage of 600V, and capable of operating between -55°C and 105°C. This violet wire is supplied on a 100-foot spool, meets UL approvals, and is RoHS compliant.
Package100
Voltage150V
Voltage Rating150V
MountingExternal
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Alpha Wire 7055/19VI005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Alpha Wire 7055/19VI005 technical specifications.
General
| Approvals | UL |
| Package/Case | 100 |
| Color | Violet |
| Conductor Material | Copper |
| Insulation Diameter | 0.052inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.01inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | External |
| Outside Diameter | 1.32mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MIL-W-16878E Type B, 7055/19 |
| Stranding | 19 x 34 |
| Voltage | 150V |
| Voltage Rating | 150V |
| DC Rated Voltage | 600V |
| Weight | 1lb |
| Wire/Cable Gauge | 22AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 7055/19VI005 Datasheet
Download the complete datasheet for Alpha Wire 7055/19VI005 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
Product Images
