22AWG hook-up wire featuring a 7 x 30 stranded copper conductor, insulated with 0.01-inch PVC for a 0.05-inch insulation diameter. This UL-approved wire operates within a temperature range of -55°C to 105°C and is rated for 150V AC/DC. The green PVC jacket provides a 1.3mm outside diameter. Supplied on a 100-foot spool, this RoHS compliant wire is suitable for cable mounting applications.
Package100
Voltage150V
Voltage Rating150V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 7055GR005 technical specifications.
General
Approvals
UL
Package/Case
100
Color
Green
Conductor Material
Copper
Insulation Diameter
0.05inch
Insulation Material
PVC
Insulation Thickness
0.01inch
Jacket Material
PVC
Length
100foot
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Cable
Number of Strands
7
Outside Diameter
1.3mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MIL-W-16878E Type B, 7055
Stranding
7 x 30
Voltage
150V
Voltage Rating
150V
DC Rated Voltage
300V
Weight
1lb
Wire/Cable Gauge
22AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 7055GR005 Datasheet
Download the complete datasheet for Alpha Wire 7055GR005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

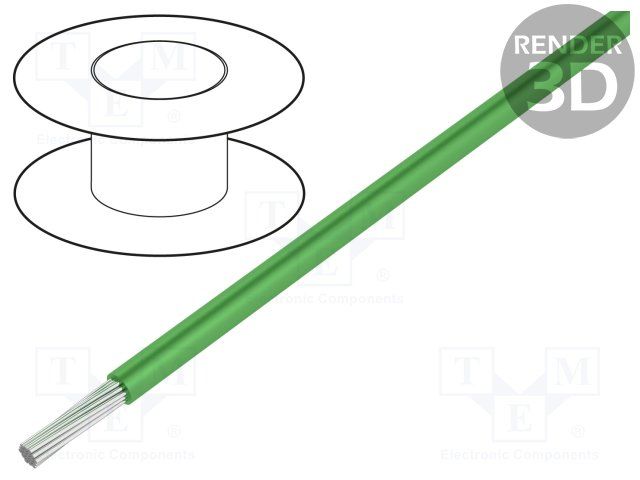

Product Images
