Hook-up wire featuring 20 AWG stranded copper conductor, insulated with irradiated PVC for a 0.010-inch insulation thickness and 0.060-inch outside diameter. Rated for 150V AC and 600V DC, this brown wire operates from -55°C to 105°C and carries a 10A current rating. It is RoHS compliant and supplied on a 1000-foot spool.
Voltage150V
Voltage Rating150V
Current Rating10A
MountingExternal
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Alpha Wire 7056/19BR001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Alpha Wire 7056/19BR001 technical specifications.
General
| Approvals | UL |
| Color | Brown |
| Conductor Material | Copper |
| Current Rating | 10A |
| Insulation Diameter | 0.06inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.01inch |
| Jacket Material | PVC |
| Length | 1000foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | External |
| Outside Diameter | 1.52mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MIL-W-16878E Type B, 7056/19 |
| Voltage | 150V |
| Voltage Rating | 150V |
| Voltage Rating (AC) | 150V |
| DC Rated Voltage | 600V |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Hook-Up |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 7056/19BR001 Datasheet
Download the complete datasheet for Alpha Wire 7056/19BR001 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

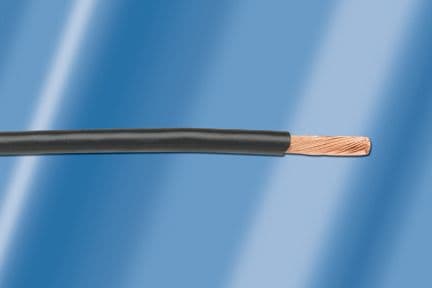

Product Images
