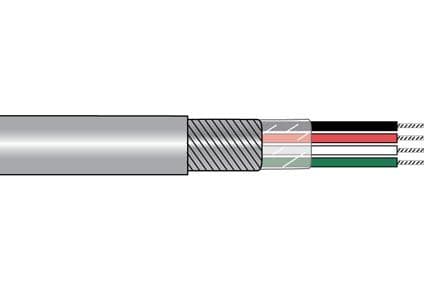

25-conductor, 26 AWG multi-conductor cable featuring a 0.14 mm² conductor cross-sectional area. This shielded cable utilizes copper conductors and PVC insulation, with an insulation diameter of 0.355 inches and a thickness of 0.04 inches. The grey PVC jacket offers a maximum operating temperature of 105°C and a minimum of -10°C, with a 300V voltage rating. Supplied on a 100-foot spool, this RoHS compliant cable has an outside diameter of 8.8mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha Wire 86125CYSL005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alpha Wire 86125CYSL005 technical specifications.
| Package/Case | 100 |
| Color | Grey |
| Conductor Material | Copper |
| Insulation Diameter | 0.355inch |
| Insulation Material | PVC |
| Insulation Thickness | 0.04inch |
| Jacket Material | PVC |
| Length | 100foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -10°C |
| Mount | Cable |
| Number of Conductors | 25 |
| Number of Cores | 25 |
| Outside Diameter | 8.8mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Xtra-Guard® Flex |
| Shielding | Shielded |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 8.15lb |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Multi-Conductor |
| RoHS | Compliant |
