Alpha Wire
9817BK001
ALPHA WIRE 9817 BK001 Twinaxial Cable, UL AWM Style E 2498, Black, 20 AWG, 7 x 0.32mm, 1000 ft, 304.8 m
Package100
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 9817BK001 technical specifications.
General
| Package/Case | 100 |
| Color | Black |
| Conductor Material | Copper |
| Dielectric Material | PE |
| Impedance | 100R |
| Insulation Diameter | 0.33inch |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Length | 1000foot |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Outside Diameter | 8.3mm |
| Package Quantity | 1 |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 9817BK001 Datasheet
Download the complete datasheet for Alpha Wire 9817BK001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

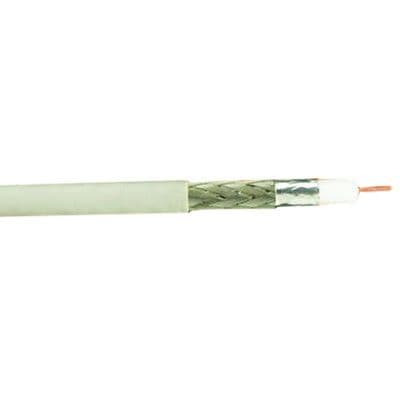

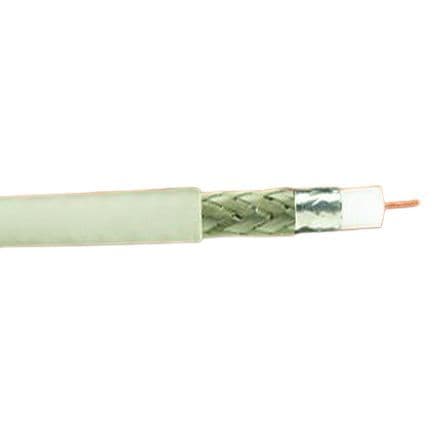

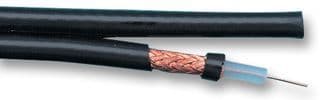

Product Images
