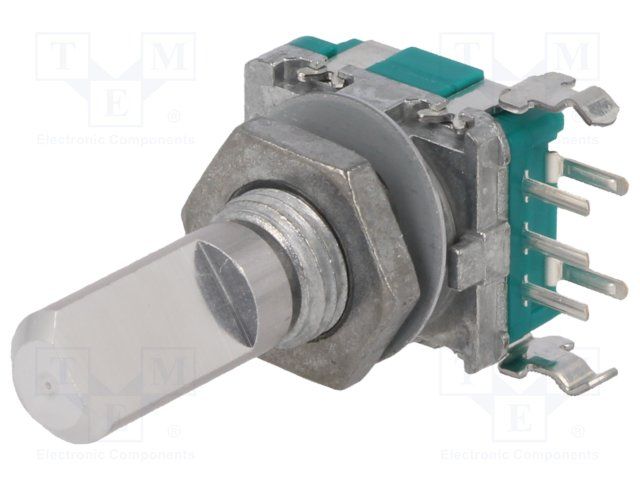

The EC11B15242AE from Alps Electric is a dual channel quadrature encoder with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It operates at a maximum supply voltage of 5V and is packaged in a metal case for through hole mounting. The device is RoHS compliant and available in a tray packaging format.
Sign in to ask questions about the Alps Electric EC11B15242AE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alps Electric EC11B15242AE technical specifications.
| Package/Case | Metal |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Output Type | Quadrature |
| Packaging | Tray |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Alps Electric EC11B15242AE to view detailed technical specifications.
