PackageCeramic
Voltage Rating300V
Current Rating76A
Quick Jump:
Technical Specifications
Altech CB16/2H technical specifications.
General
Approvals
cULus
Package/Case
Ceramic
Color
White
Contact Material
Steel
Contact Plating
Zinc
Current Rating
76A
Height
23.2mm
Lead Free
Lead Free
Length
31mm
Max Operating Temperature
600°C
Min Operating Temperature
-40°C
Number of Poles
2
Number of Positions
4
Package Quantity
50
Series
EUROBLOCKS™
Termination
Screw
Voltage Rating
300V
DC Rated Voltage
300V
Width
28mm
Wire Gauge (Max)
6AWG
Wire Gauge (Min)
20AWG
Compliance
RoHS
Not Compliant
Datasheet
Altech CB16/2H Datasheet
Download the complete datasheet for Altech CB16/2H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

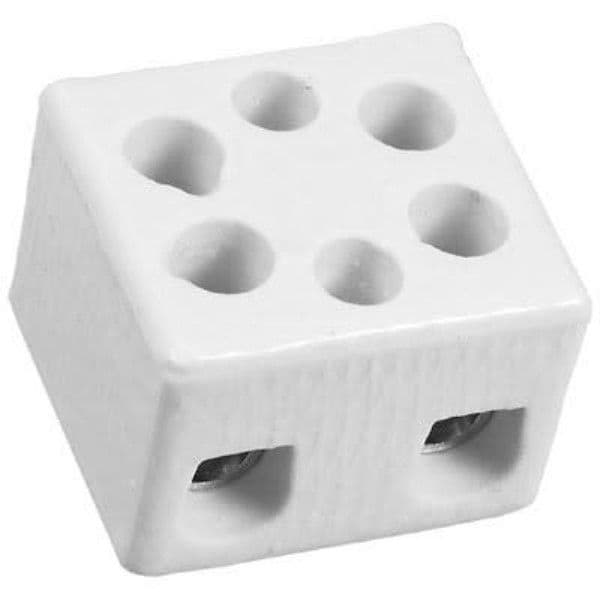

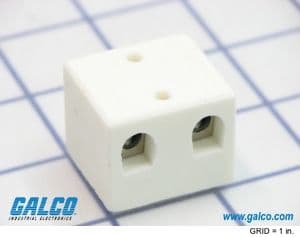

Product Images
