This terminal block is rated for 600V and 40A, with a 2-position design and through hole mounting. It features nylon insulation and a screw termination. The block measures 45mm in height, 43mm in length, and 6mm in width, with a terminal width of 6mm. It is available in a package quantity of 100 and is lead-free.
Voltage600V
Current35A
Voltage Rating750V
Current Rating40A
Quick Jump:
Technical Specifications
Altech CTS4U-N/BU technical specifications.
General
| Color | Blue |
| Current | 35A |
| Current Rating | 40A |
| Height | 45mm |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 43mm |
| Mount | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Package Quantity | 100 |
| Terminal Width | 6mm |
| Termination | Screw |
| Voltage | 600V |
| Voltage Rating | 750V |
| Width | 6mm |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 10AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Altech CTS4U-N/BU Datasheet
Download the complete datasheet for Altech CTS4U-N/BU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

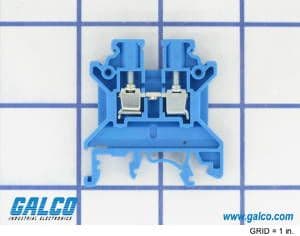

Product Images
