Amphenol
031-203
Wire Housing Crimp Contact, Brass, Nickel, Bronze/Copper/Brass, Silver, 27mm, 50R, 500V
This crimp contact is made from brass with a nickel plating and features a bronze, copper, or brass contact with a silver plating. It has a length of 27mm and an impedance of 50R, with a voltage rating of 500V. The contact is suitable for use in wire housings and can be mounted to a panel or bulkhead. The operating temperature range is -65°C to 165°C, and it can operate at frequencies up to 4 GHz.
Frequency0 to 4 GHz
Resistance50R
Voltage Rating500V
MountingPanel, Bulkhead
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Amphenol 031-203 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Amphenol 031-203 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Contact Material | Bronze, Copper, Brass |
| Contact Plating | Silver |
| Depth | 17.5mm |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Length | 27mm |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Panel, Bulkhead |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 50R |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 031-203 Datasheet
Download the complete datasheet for Amphenol 031-203 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

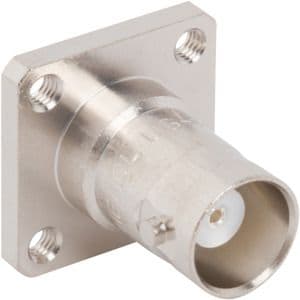

Product Images
