Straight, female RF coaxial connector for cable mounting, featuring a 75 Ohm impedance and operating frequency range from 0 Hz to 4 GHz. Constructed with a brass body and nickel plating, it utilizes a gold-plated brass center contact and polyoxymethylene dielectric. This connector supports up to 500 mating cycles, a maximum operating temperature of 165°C, and a voltage rating of 500V.
Frequency4GHz
Resistance75R
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 031-71013-RFX technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | Polyoxymethylene |
| Frequency | 4GHz |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 75R |
| Insulation Material | Polytetrafluoroethylene |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 1 Hz to GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Nickel |
| Polarity | Standard |
| Radiation Hardening | No |
| Resistance | 75R |
| Termination | Crimp |
| Voltage Rating | 500V |
| Weight | 0.335103oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 031-71013-RFX Datasheet
Download the complete datasheet for Amphenol 031-71013-RFX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

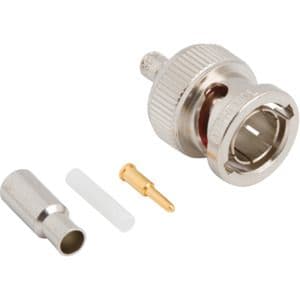

Product Images
