5-way circular plug connector featuring a thermoplastic body in black. This general-purpose connector offers a straight, unshielded orientation with crimp termination. It utilizes copper and copper alloy contacts with silver and tin plating, rated for 8A and 250V AC. Designed for free-hanging mounting, it operates within a temperature range of -40°C to 125°C and boasts IP65 and IP67 sealing for waterproof, water-resistant, and dust-tight applications.
Voltage Rating250V
Current Rating8A
MountingFree Hanging
Quick Jump:
Technical Specifications
Amphenol 044 103 10005 technical specifications.
General
| Body Material | Thermoplastic |
| Color | Black |
| Contact Material | Copper, Copper Alloy |
| Contact Plating | Silver, Tin |
| Contact Shape | Circular |
| Contact Type | CRIMP |
| Current Rating | 8A |
| Gender | Receptacle |
| Housing Color | Black |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Primary Type | Sealed |
| Radiation Hardening | No |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight, IP67 |
| Reach SVHC Compliant | No |
| Series | 44 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 044 103 10005 Datasheet
Download the complete datasheet for Amphenol 044 103 10005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

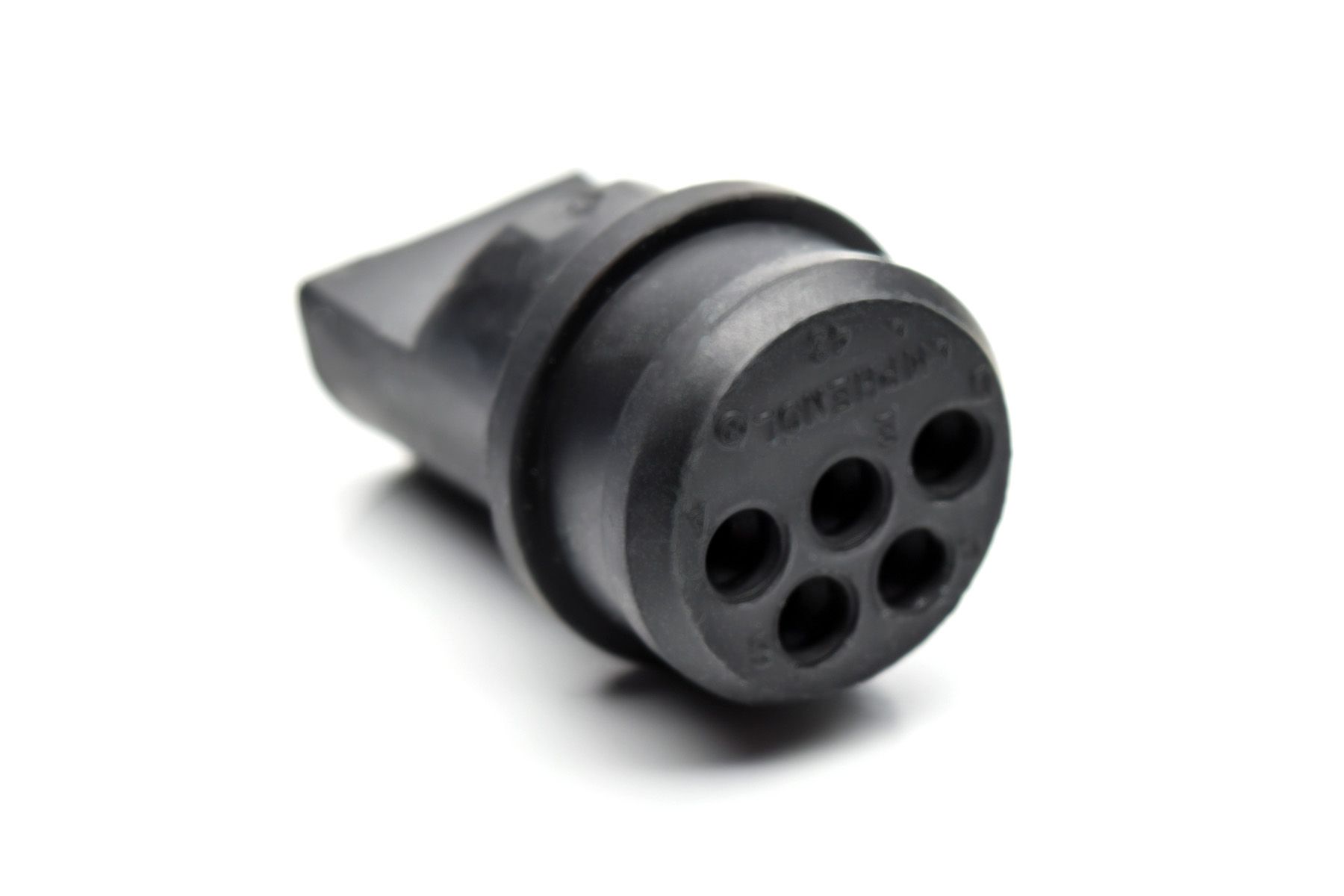

Product Images
