This straight, panel-mount wire housing and contact features a 50 Ohm impedance and operates from 0Hz to 4GHz. Constructed with a brass body plated in nickel, it utilizes silver-plated brass and copper contacts for reliable signal transmission. Designed for bulkhead mounting with flanges, this connector supports up to 500 mating cycles and has a voltage rating of 1.5kV. Its insulation is made from tetrafluoroethylene, and it is rated for operating temperatures between -65°C and 85°C.
Frequency4GHz
Voltage Rating1.5kV
MountingPanel, Flanges, Bulkhead
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 082-92 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Silver |
| Contact Material | Brass, Copper |
| Contact Plating | Silver |
| Depth | 30.2mm |
| Frequency | 4GHz |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Tetrafluoroethylene |
| Length | 38.9mm |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 85°C |
| Military Standard | UG-496 |
| Min Operating Temperature | -65°C |
| Mount | Panel, Flanges, Bulkhead |
| Number of Ports | 1 |
| Operating Frequency | 0 to 4Hz |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Nickel |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | HN |
| Termination | Solder |
| Voltage Rating | 1.5kV |
| Weight | 1.359988oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 082-92 Datasheet
Download the complete datasheet for Amphenol 082-92 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

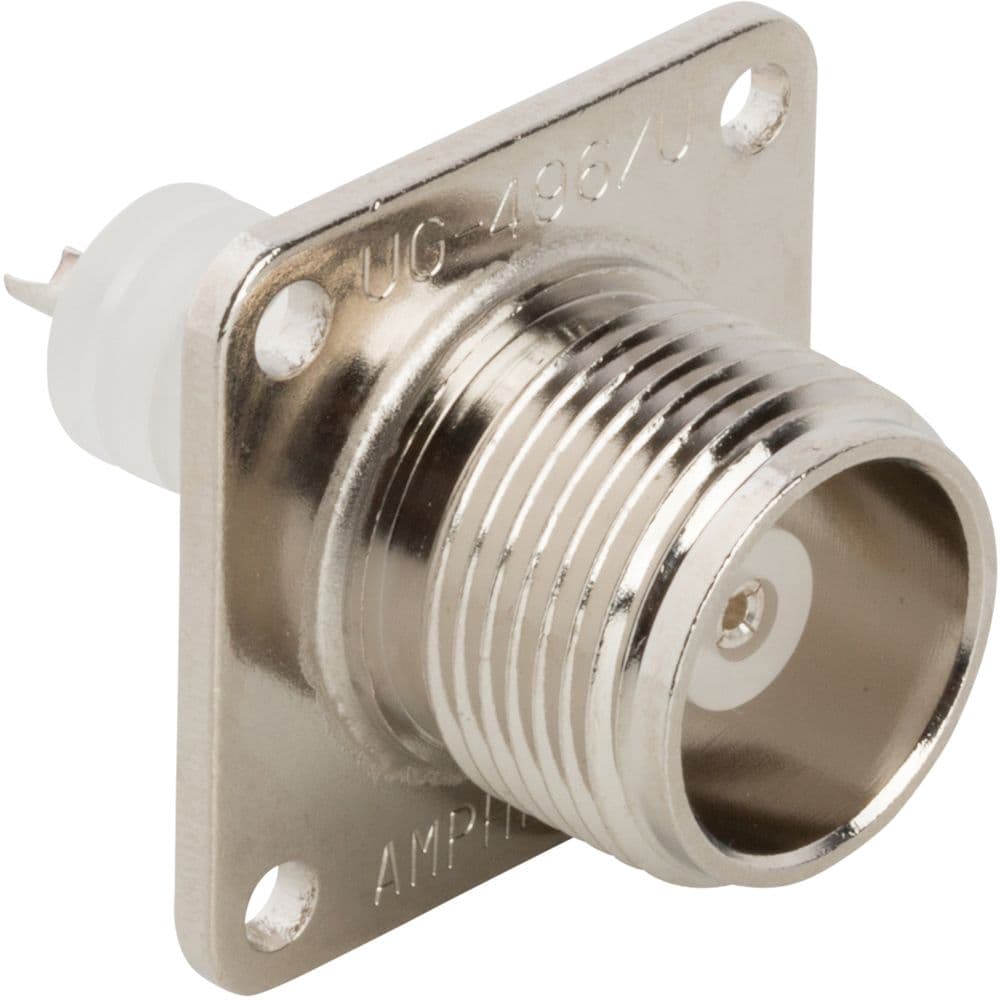

Product Images
