16-position, dual female edge connector with a 2.54mm pitch and 0.100-inch contact spacing. Features cantilever copper alloy contacts with gold and tin plating, rated for 7A current and 1kV AC voltage. Designed for 0.062-inch card thickness, this straight, through-hole mounted connector has a black thermoplastic housing and operates between -5°C and 105°C. RoHS compliant and suitable for solder termination.
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol 10046972-001LF technical specifications.
General
Card Thickness
0.062inch
Color
Black
Contact Material
Copper Alloy, Copper
Contact Plating
Gold, Tin, Matte
Contact Type
Cantilever
Current Rating
7A
Gender
Female
Housing Color
Black
Insulation Material
Thermoplastic
Max Operating Temperature
105°C
Min Operating Temperature
-5°C
Max Voltage Rating (AC)
1kV
Mount
Through Hole
Number of Contacts
16
Number of Positions
16
Number of Rows
2
Orientation
Straight
Package Quantity
84
Packaging
Tray
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
5.08mm
Series
HPCE™
Termination
Solder
Voltage Rating (AC)
1kV
Compliance
RoHS
Compliant
Datasheet
Amphenol 10046972-001LF Datasheet
Download the complete datasheet for Amphenol 10046972-001LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

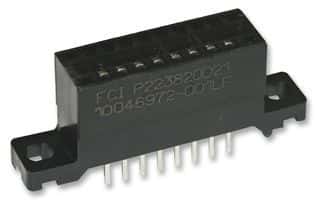

Product Images
