26-position female D-subminiature connector with straight solder termination and a 2.29mm pitch. Features copper alloy contacts with gold plating, rated for 2.5A and 250V AC. Insulated with black thermoplastic, it offers a mating cycle of 200 and operates within a temperature range of -55°C to 105°C. This free-hanging, panel-mount connector has a steel shell and is RoHS compliant.
Voltage Rating250V
Current Rating2.5A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
Amphenol 10090770-S264ALF technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 2.5A |
| Depth | 12.55mm |
| Gender | Female |
| Height | 5.2mm |
| Insulation | Insulated |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 39.24mm |
| Mating Cycles | 200 |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (AC) | 250V |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging, Panel |
| Number of Contacts | 26 |
| Number of Ports | 1 |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 70 |
| Packaging | Tray |
| Pitch | 2.29mm |
| Plating | Nickel |
| Radiation Hardening | No |
| Series | 10090770 |
| Shell Material | Steel |
| Shell Size | A |
| Termination | Solder |
| Voltage Rating | 250V |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 10090770-S264ALF Datasheet
Download the complete datasheet for Amphenol 10090770-S264ALF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

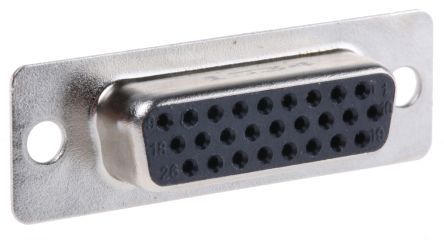

Product Images
