RF coaxial connector, straight, cable mount, 50 Ohm impedance, operating from 0Hz to 4GHz. Features brass body with nickel plating, brass center contact with gold plating, and polyoxymethylene dielectric. Rated for 500V, 500 mating cycles, and operates between -40°C and 155°C. Solder termination, RoHS compliant.
Frequency4GHz
Resistance50R
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 112332 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | Polyoxymethylene |
| Frequency | 4GHz |
| Housing Color | Silver |
| Impedance | 50R |
| Insertion Loss | 0.2dB |
| Mating Cycles | 500 |
| Max Frequency | 4GHz |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Ports | 1 |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 50R |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 500V |
| Weight | 0.539692oz |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 112332 Datasheet
Download the complete datasheet for Amphenol 112332 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

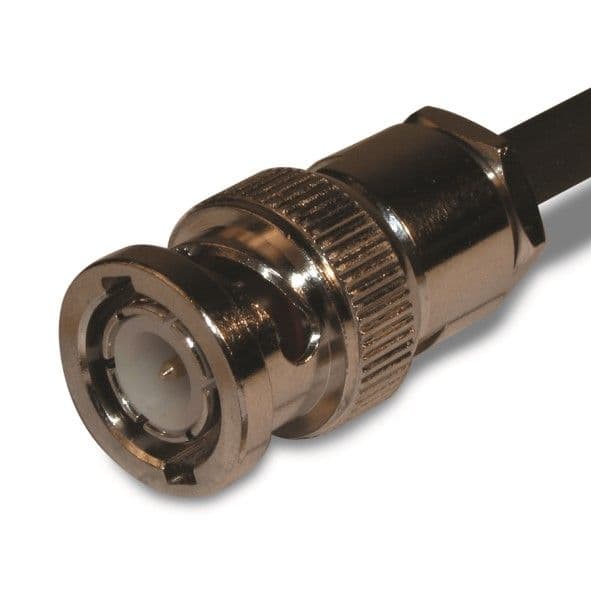

Product Images
