Straight RF connector adapter featuring BNC-BNC, female-female (jack-jack) interfaces for panel mount applications. Constructed with a brass body plated in nickel, it utilizes gold-plated brass and bronze center contacts for optimal signal integrity. Operating at 50 Ohm impedance, this adapter supports frequencies from 0 to 4 GHz with a maximum operating temperature of 85°C. The dielectric is Polyoxymethylene, and the component is lead-free and RoHS compliant.
Frequency4GHz
MountingPanel, Bulkhead
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 112437 technical specifications.
General
Adapter Style
Straight
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass, Bronze
Contact Plating
Gold
Depth
16mm
Dielectric Material
Polyoxymethylene
Gender
Male
Gender Type A
Female
Gender Type B
Female
Height
16mm
Impedance
50R
Lead Free
Lead Free
Length
32.5mm
Max Frequency
4GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel, Bulkhead
Operating Frequency
0 to 4 GHz
Orientation
Straight
Packaging
Bag
Plating
Nickel
Polarity
Normal
Radiation Hardening
No
RoHS Compliant
Yes
Weight
0.534753oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 112437 Datasheet
Download the complete datasheet for Amphenol 112437 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

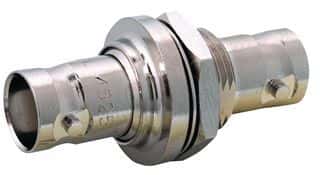

Product Images
