RF TNC connector, male, straight orientation, designed for cable mounting with a crimp terminal. Features a brass body with nickel plating and a PTFE dielectric. Offers 50 Ohm impedance and operates up to 11GHz, with a voltage rating of 500V. Constructed with brass contacts plated in gold for reliable signal transmission, supporting 500 mating cycles. Rated for operation between -65°C and 165°C.
Frequency11GHz
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 122122RP technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
PTFE
Frequency
11GHz
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
28.8mm
Mating Cycles
500
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating
500V
Weight
0.447979oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 122122RP Datasheet
Download the complete datasheet for Amphenol 122122RP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

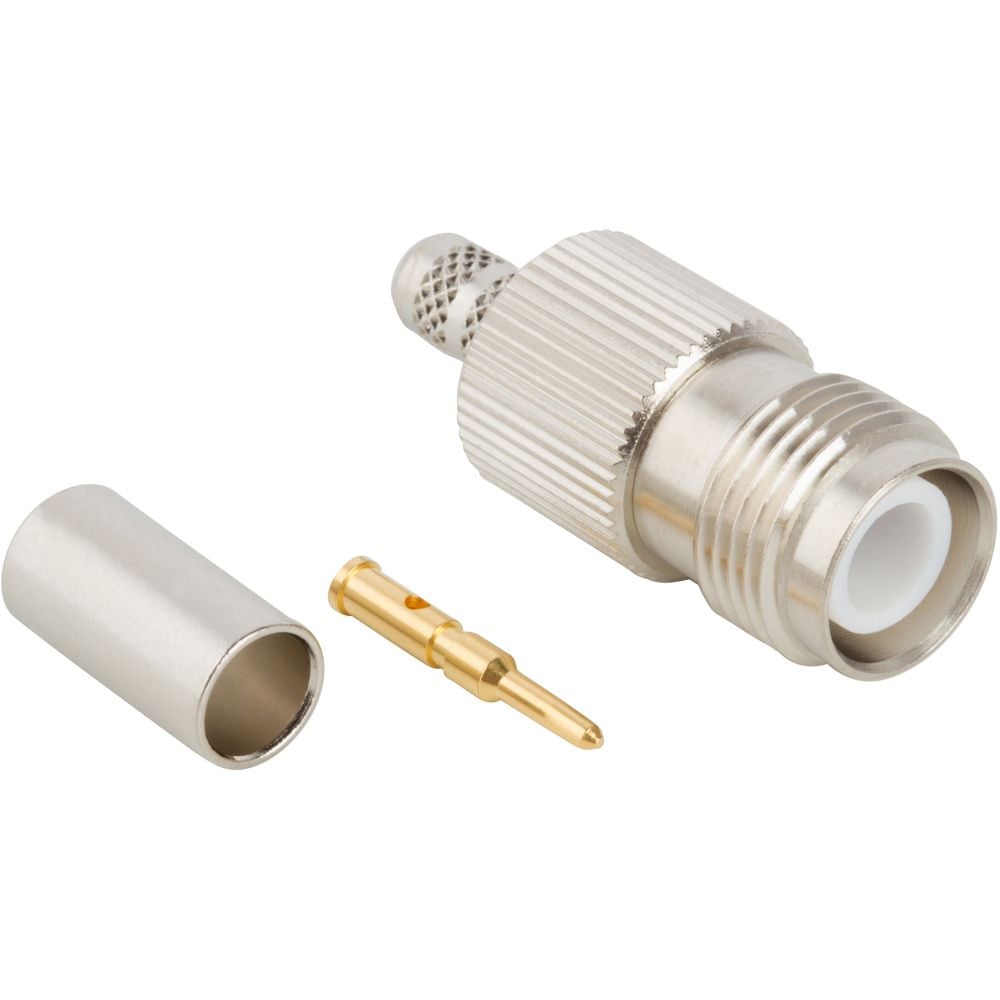

Product Images
